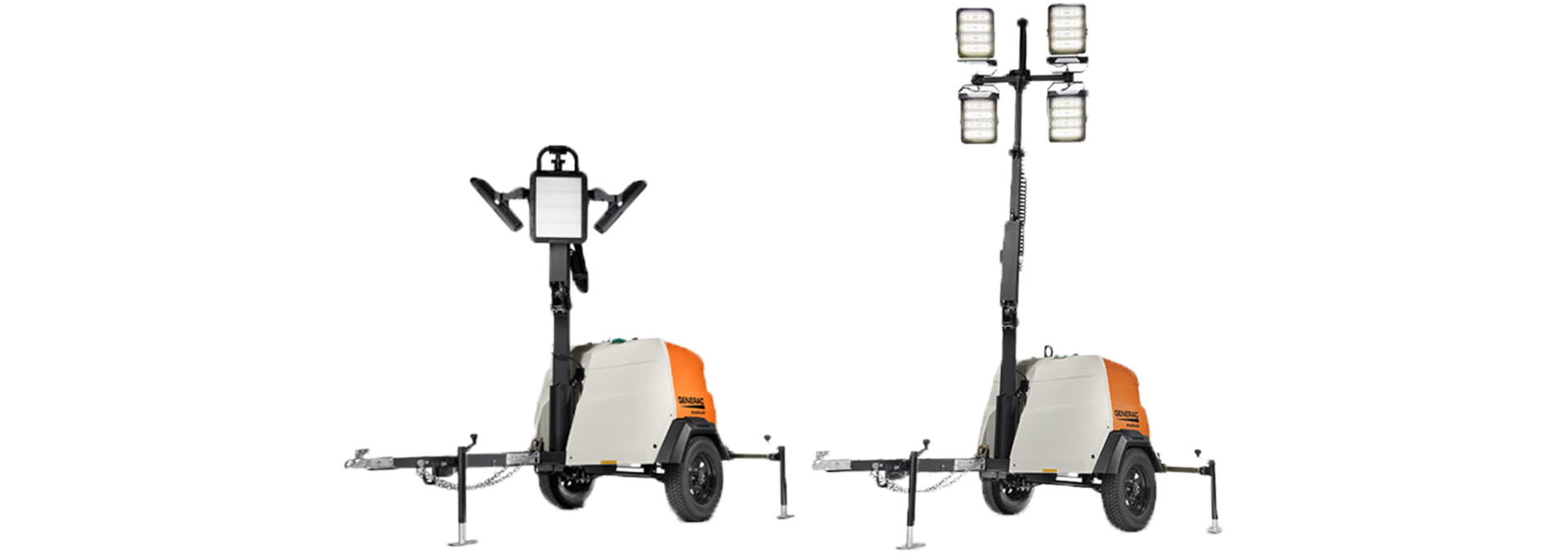

Portable Generac LED Light Towers

General Information

The newest member of the MLT6 light tower family is our most affordable LED diesel light tower to date. With a low acquisition cost and low maintenance requirements, the MLT6SMDS/MLT6SKDS LED light tower provides many of the benefits of our popular MLT6SMD LED tower, but with a simplified controller interface and single-speed Mitsubishi or Kubota engine.

Request More Info

POWERFUL & EASY TO USE

188,000 total lumens | Covers 25,068 sq ft (1,840 sq m) at 0.5 ft-c

DURABLE & VERSATILE

Each 320W LED fixture can be switched on and off independently

SAFE & EFFICIENT

Single speed Mitsubishi or Kubota engine offers excellent fuel efficiency

Detailed Specs

Kubota®
Diesel fueled
EPA Final Tier 4
3 cylinder
1.0 L displacement
Liquid cooled
Power @ 1,800 rpm – HP (kW):
- Prime: 11.7 (8.7)
- Standby: 13.1 (9.8)
Air filter: Dry type cartidge

Polyethylene tank – 39.9 gal (151.04 L) capacity
Tun time – hr:
- Lights only: 180*
- 100% load: 59*
Fuel consumption – gph (Lph:)
- Lights only: 0.2 (0.9)*
- 100% load: 0.7 (2.6)*
Exterior fill port diameter: 3.5 in (89 mm)

*Data based on engine manufacturer and field test data after 100-hr engine break-in period. Actual results may vary, according to factors such as age and maintenance of equipment, environmental conditions, and fuel density.

60 Hz engine/generator
Marathon Electric® brushless
Up to 6 kW output
120/240 VAC, 20/30 A
± 6% capacitor voltage regulation

External, illuminated control panel with sealed switches
4-position key activated switch (OFF, RUN, GLOW PLUG, START)
Digital hour meter
Automatic shutdown for low oil pressure and high coolant temperature
One switch controls all light fixtures

Four 320 W LED fixtures
Aluminum heat sink and end caps
Efficiency: 147 lpw
Lm/fixture: 47,000
Total lm: 188,000
Coverage at 0.5 ft-c: 25,068 ft² (2,329 m²)
IP65 rated fixtures
Fixture-mounted drivers

30 A start up trip brealer (ensures no-load condition exists at start-up)
Floodlight circuits with sealed 10 A breakers
Convenience receptacles with individual breakers:
- One 120 VAC, 20 A, GFCI, duplex outlet (NEMA 5-20R type)
- One 240 VAC, 30 A, twistlock outlet (NEMA L14-30Rp type)
Wiring is sized and fused to required amperage draw
440 CCA wet cell battery

Vertical operation and storage
Five tubular steel sections with polymer guides
Ground-adjustable light fixtures
Winch: Dual handle, manual crank, winch cover
Distinctive angled fixture mount for common light distribution
Rotation: 359° range of motion, adjustable from ground during full extension
Industrial black powder-coat finish
Self-retracting, coil mast cord

Hood:
- Injection-molded with UV protected colorant
- Flip-up design for ease of service
Sound rating: 68DB(A) at 23 ft (7 m) @ prime power
Lifting point and fork pockets
Multi-lingual operating and safety decals
Illuminated license plate holder
Document holder with owner’s manual – includes AC and DC wiring diagrams
