Portable Atlas Copco Compressors
General Information

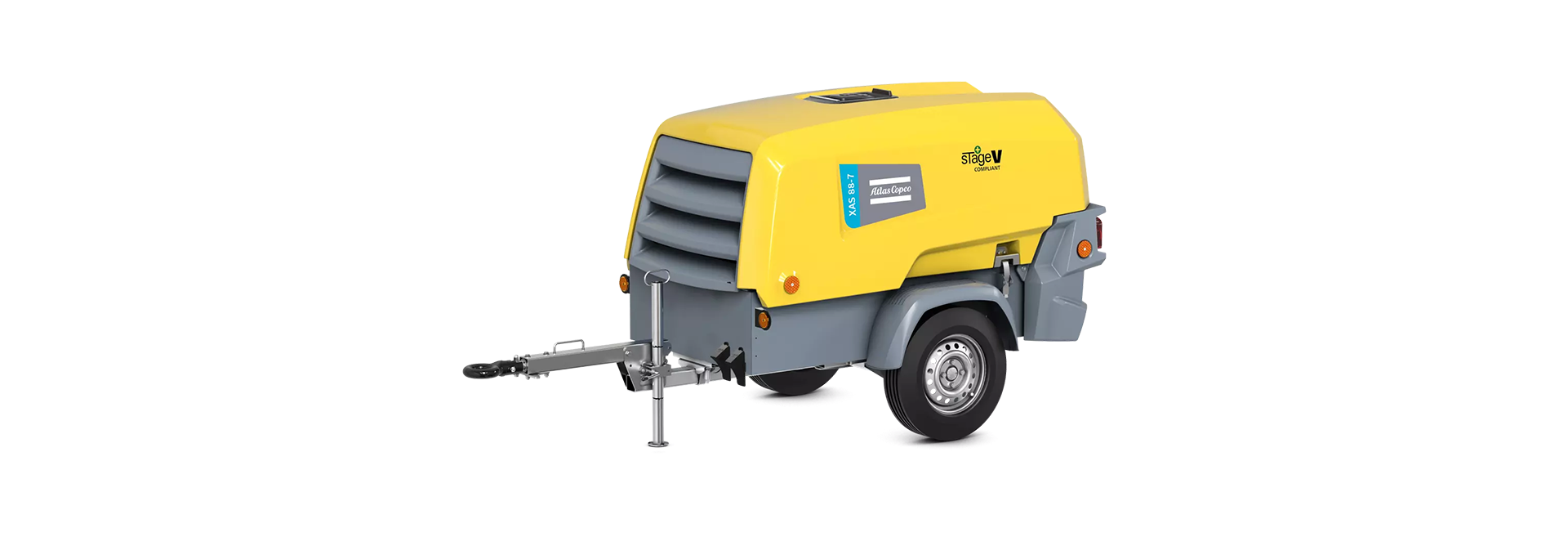

The Atlas Copco XAS 185 150 is a single-stage, oil-injected, rotary screw type air compressors powered by a liquid-cooled, 4-cylinder Kubota diesel engine with cold start.
The unit incorporate the new generation C67 screw element in its air end, combined with a Kubota diesel engine model V1505-CR-T-E5B, complying with the T4F emission standard. Special attention has been given to the overall product quality, user friendliness, ease of serviceability, and economical operation to ensure best in class cost of ownership. The optional pioneering PACE functionality coupled with the intuitive Xc2003 controller enables multiple pressure and flow settings ensuring meeting air flow and pressure to the application requirements.
WORKING PRESSURE
100 – 150 PSI
FREE AIR DELIVERY
119 – 174 CFM
EFFICIENCY & AUTONOMY
Fuel Savings
Detailed Specs
- Nominal effective working pressure: psi 100 – 150 psi
- Actual Free Air Delivery: 174 – 120 CFM
- Max.sound pressure level at 10m (Lp): 70 dB(A)
- Max ambient temperature (at sea level): 122 °F
- Min ambient temperature: -4 °F
- Engine brand: Kubota
- Engine model: V1505-CR-T
- Emission: T4F
- Engine power at full load engine speed: 44 hp
- Number of cylinders: 4
- Full load/nominal speed: 3000 rpm
- Unload speed: 1800 rpm
- Capacity of oil sump: 1.5 gal
- Box (length x width x height): 6.4 ft x 3.9 ft x 3.8 ft
- Box weight: 1433 lbs
- Undercarriage (length x width x height): 7.5 ft x 4.4 ft x 4.6 ft
- Undercarriage weight: 1651 lbs
- PE hood with back baffle
- 110% spillage-free frame
- Spin on filters
- Anti-corrosion frame
- Anti-airlock system
- Digital Xc2003 Controller
- Controller lock-out switch
- Starter motor protection system
- Cold Start
